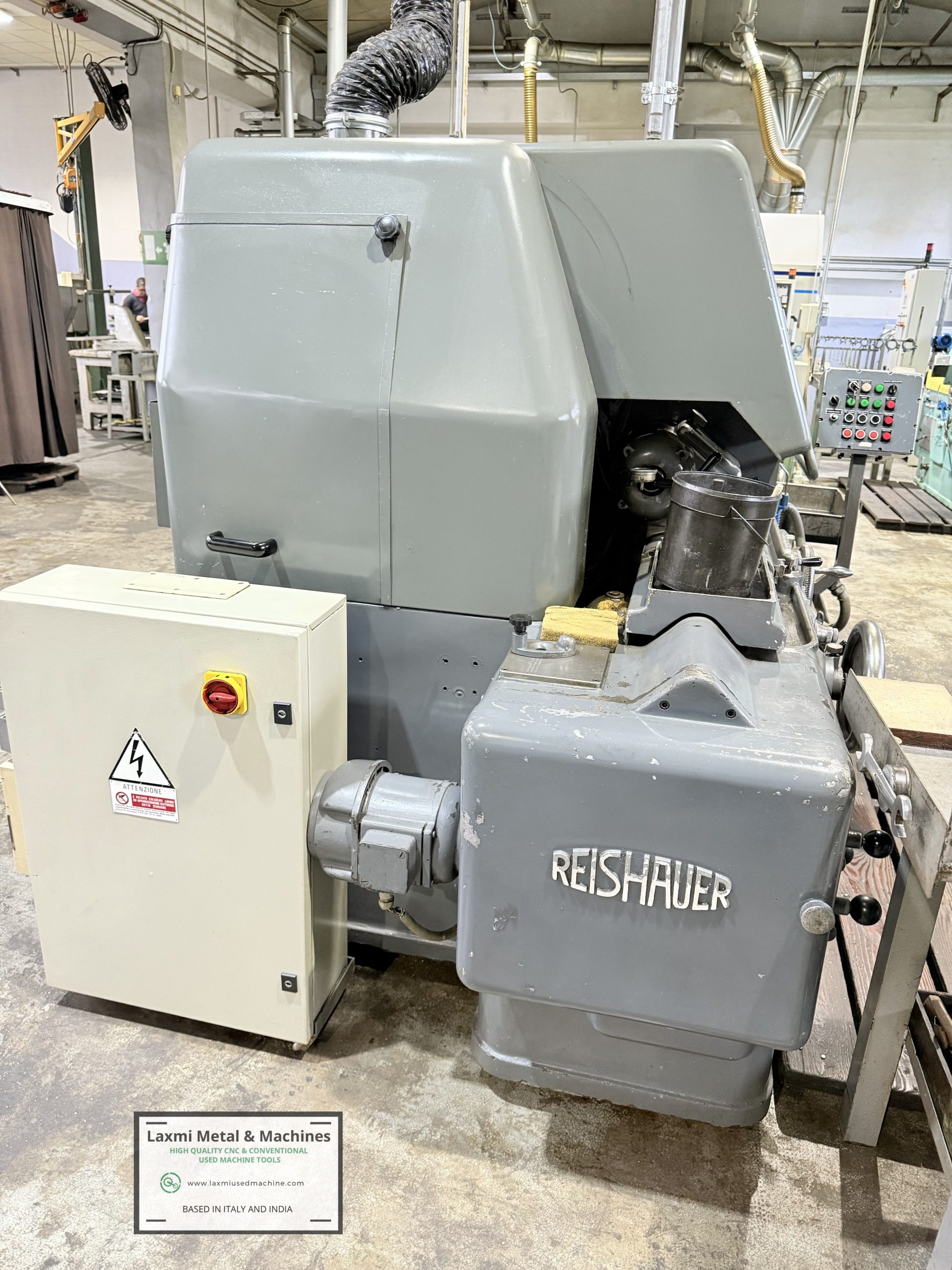

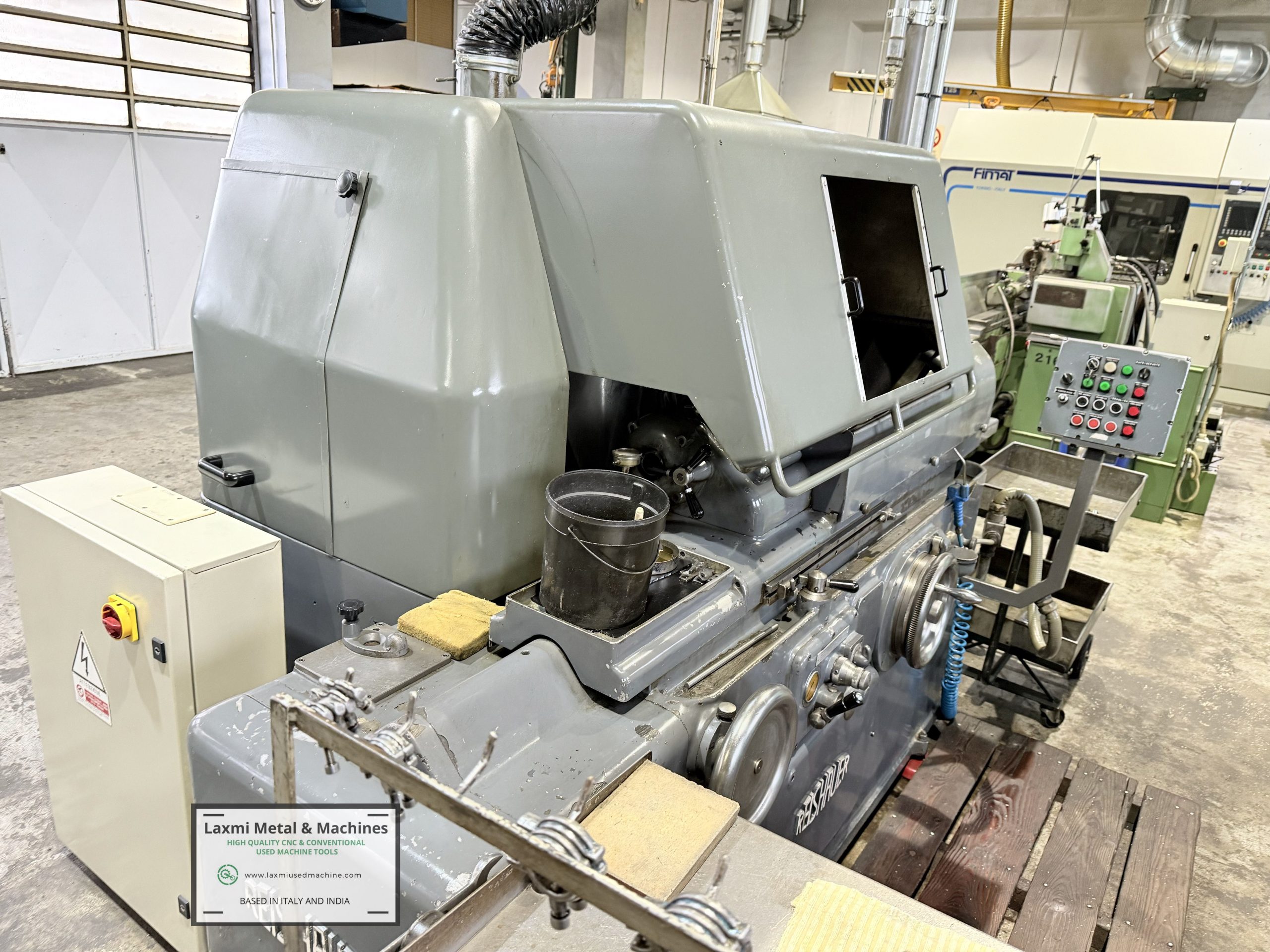

THREAD GRINDER, REISHAUER – NRK
Make: Reishauer
Model: NRK
-
- Max. grinding length: 450 mm
- Max.clamping length: 700 mm
- Thread diameter: 3–200 mm
- Thread pitch: 0,40–80 mm
- Max. angle pitch: -25º / +25º
- Grinding wheel diameter: 275-350 mm
- Grinding wheel width: 8-40 mm
- Grinding wheel bore: 160 mm
- Grinding wheel speed: 1550-1900 rpm
- Voltage – Freq.: 380 V, 50 Hz
- Dimensions: 2600x1800x1600 mm
- Weight approx.: 3500 kg
