4 AXIS CNC LATHE, EMCO PADOVANI – 500X1500

Country

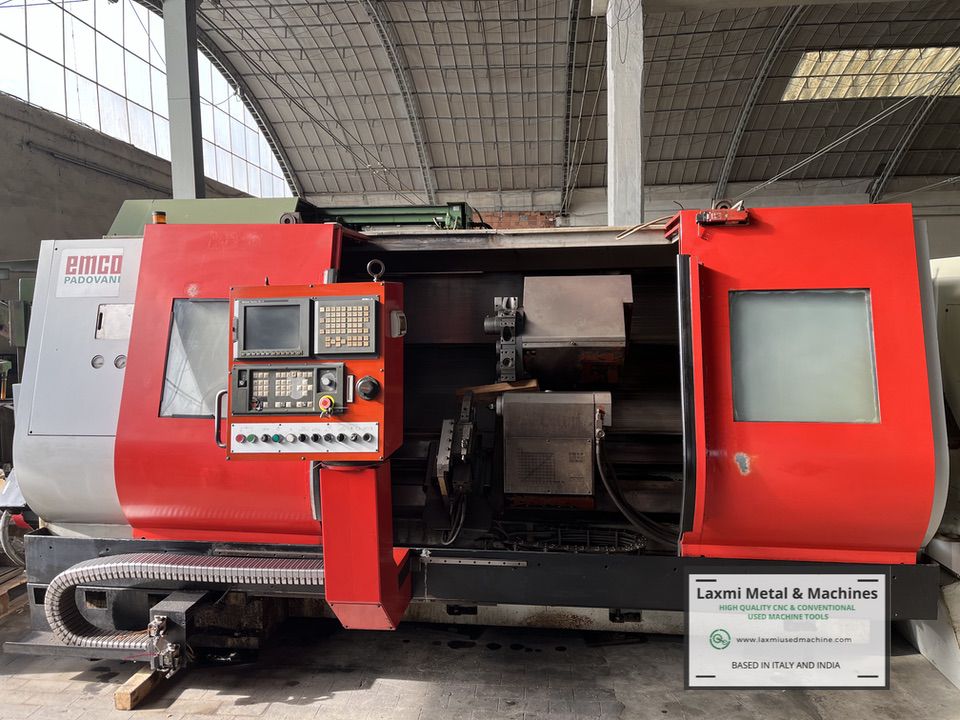

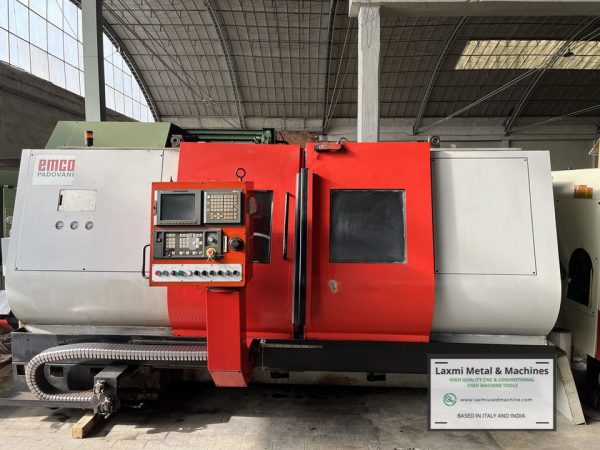

Here’s our 4 AXIS CNC LATHE,

It is in excellent working condition, for any information we are at your disposal.

THE MACHINE IS EQUIPPED WITH LIVE TOOLS

Request a Quote
SKU: cnc-lathe-emco-padovani-500x1500 Category: Tags: , , , ,

Description

4 AXIS CNC LATHE
Make: EMCO PADOVANI

Model:500X1500

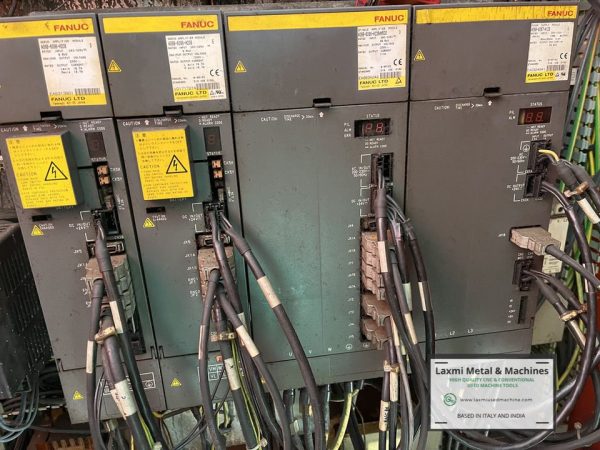

CNC = Fanuc 21i

THE MACHINE IS EQUIPPED WITH LIVE TOOLS

  • Spindle:
  • Diameter = 250mm
  • Spindle nose = ASA 8”
  • Spindle bore = 77/108mm
  • Spindle speed(rpm) = 20/4000 | 20/3000
  • Axis travel:
  • X = 310mm
  • Z = 1200 mm
  • Distance between centers = 1500mm
  • Turning diameter = 500mm

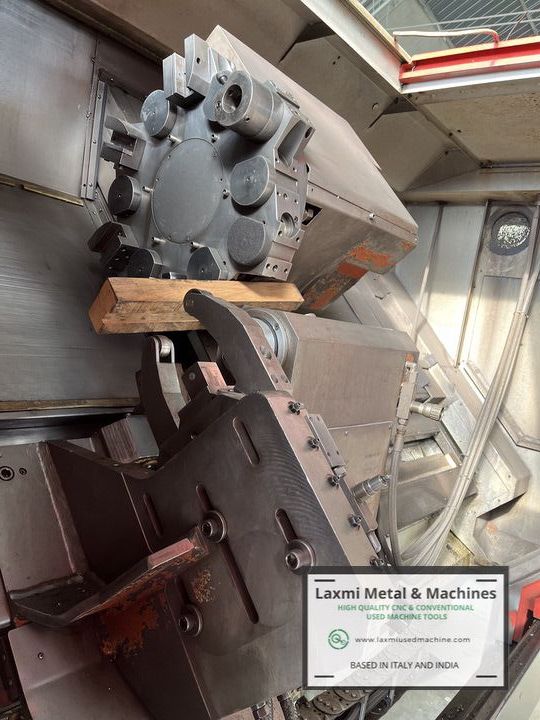

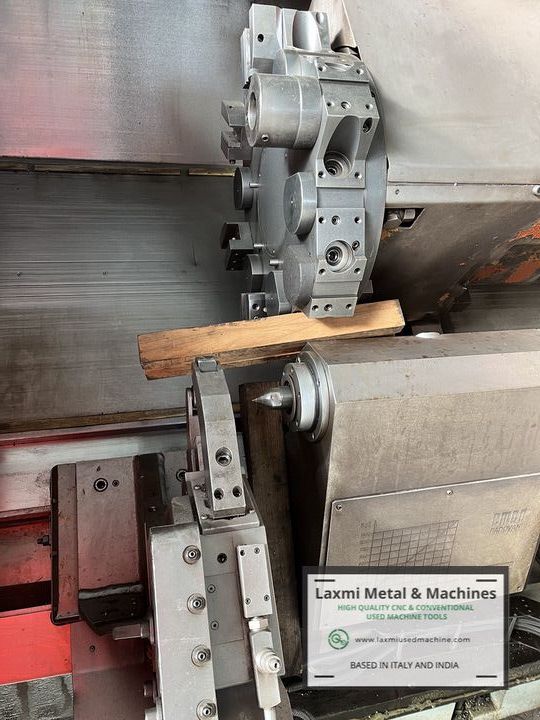

  • Turret : 12 pos. VDI 40
  • Weight:
  • Net weight of machine = 6000 – 8000 kg
