Description

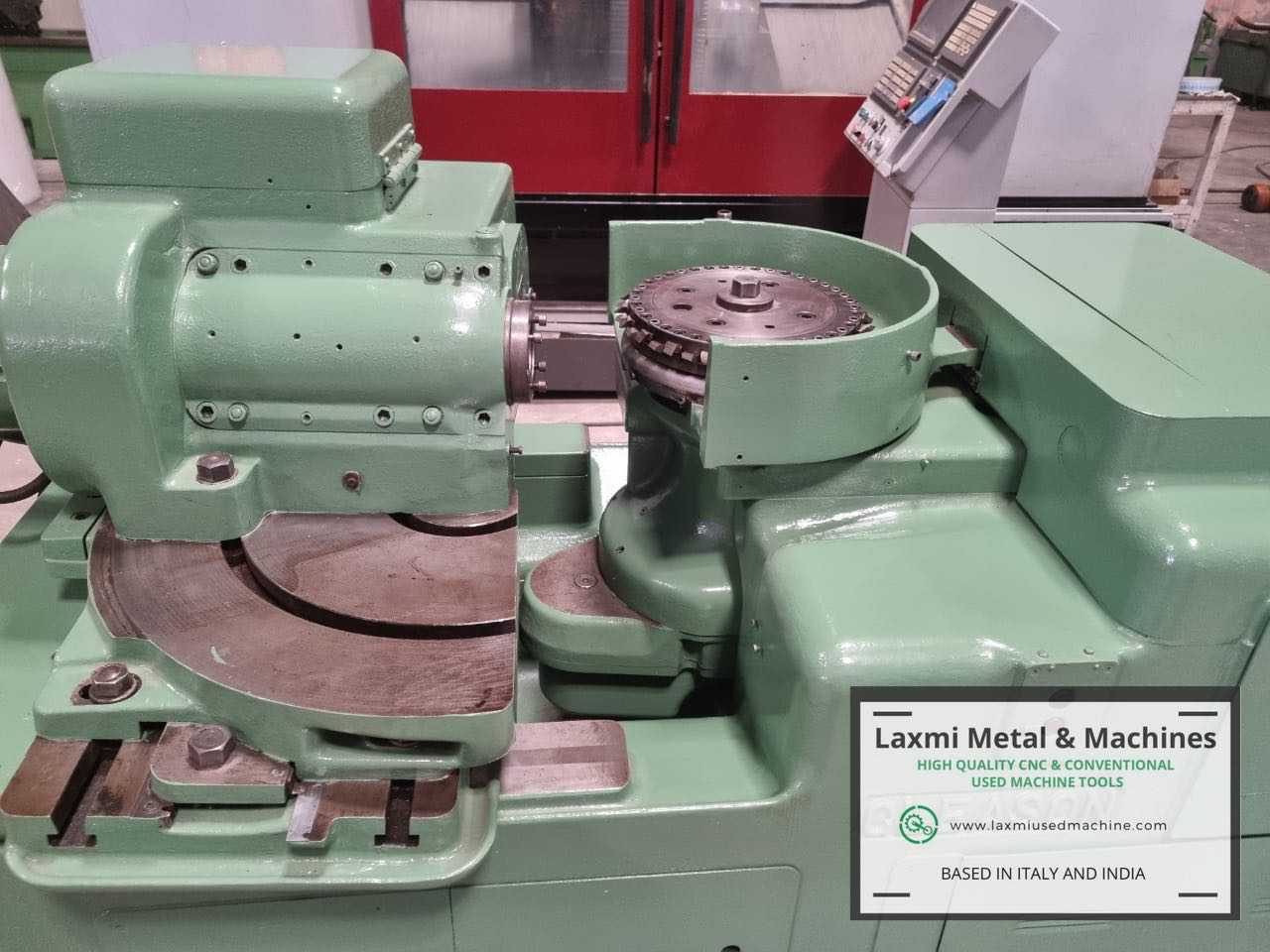

STRAIGHT BEVEL GEAR GENERATOR
Make: GLEASON REVEX
- Min/Max Cone distance: 25/181 mm
- Through-hole diameter: 78mm
- Cone depth: 152mm
- Min/Max. primitive angle (with 90° axes): 8°/80°

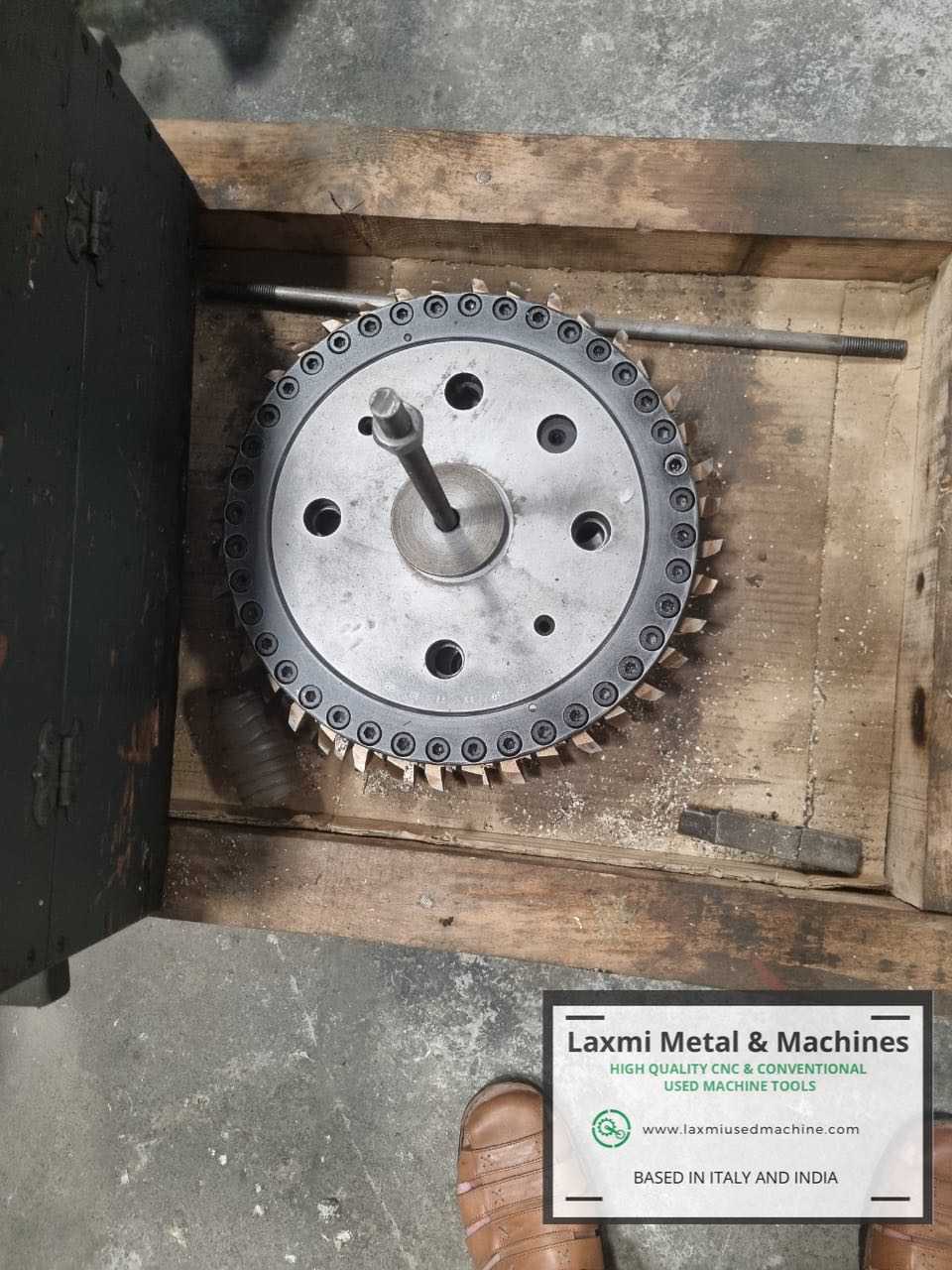

- Diameter of the blade holder disk: 154mm
- max. module (Gleason system) with a band of 2″: 6,35
- max. module (Gleason system) with a band of 1″: 8,5
Other Info:

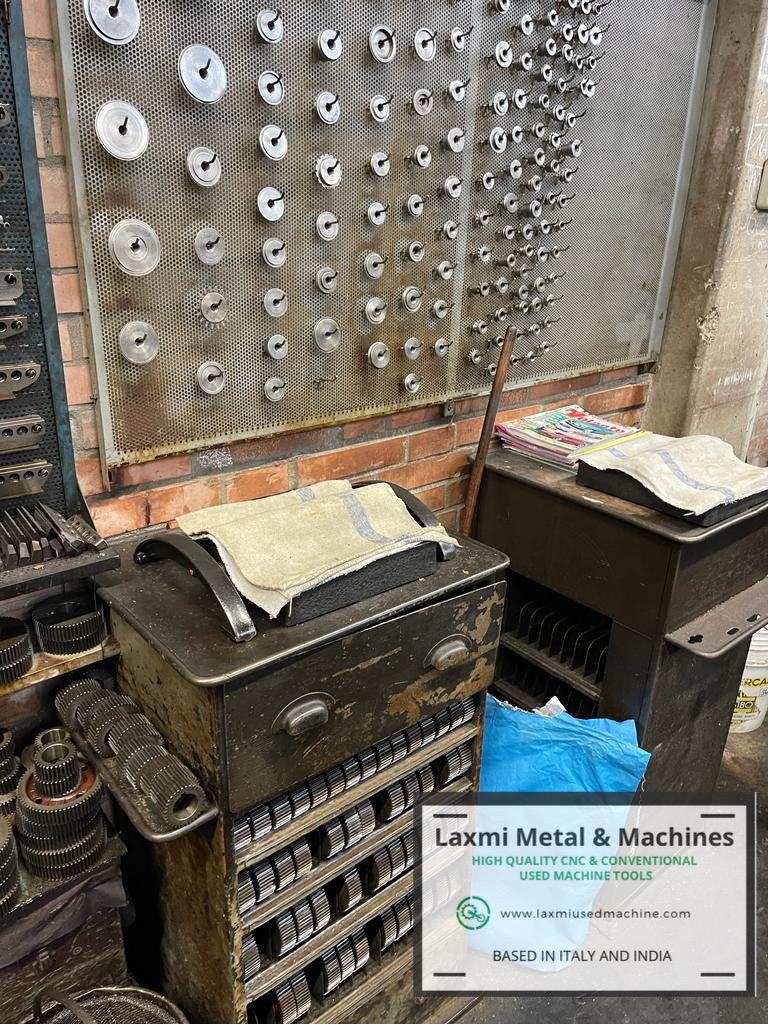

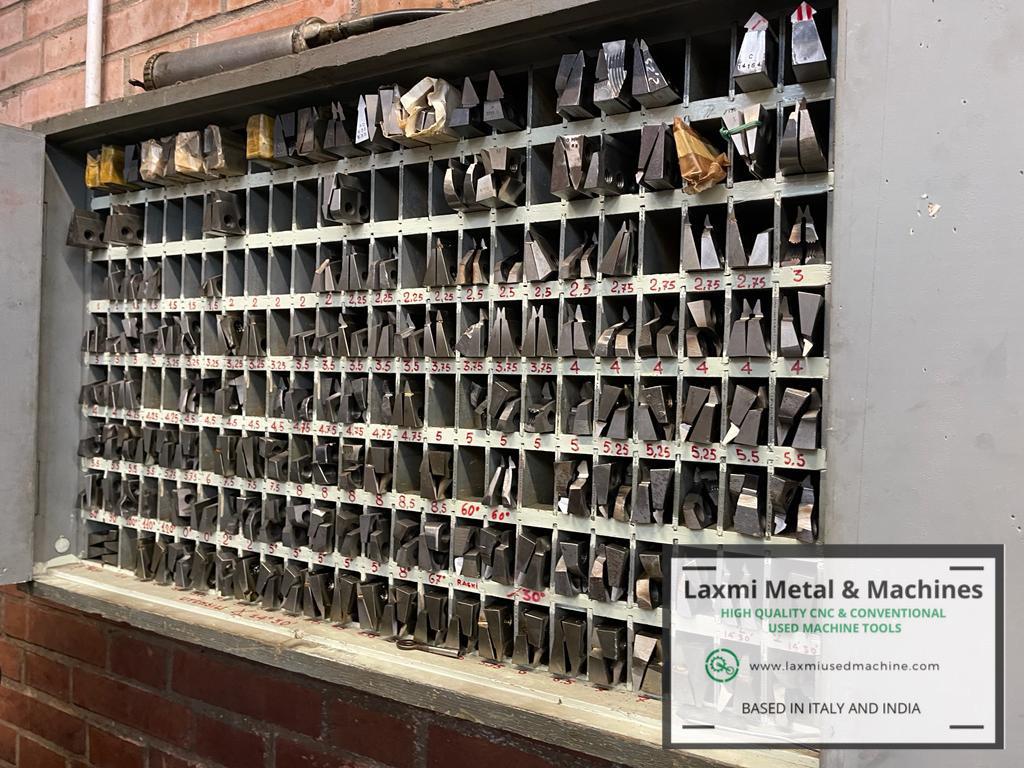

The machine is complete in all its parts and accessories
